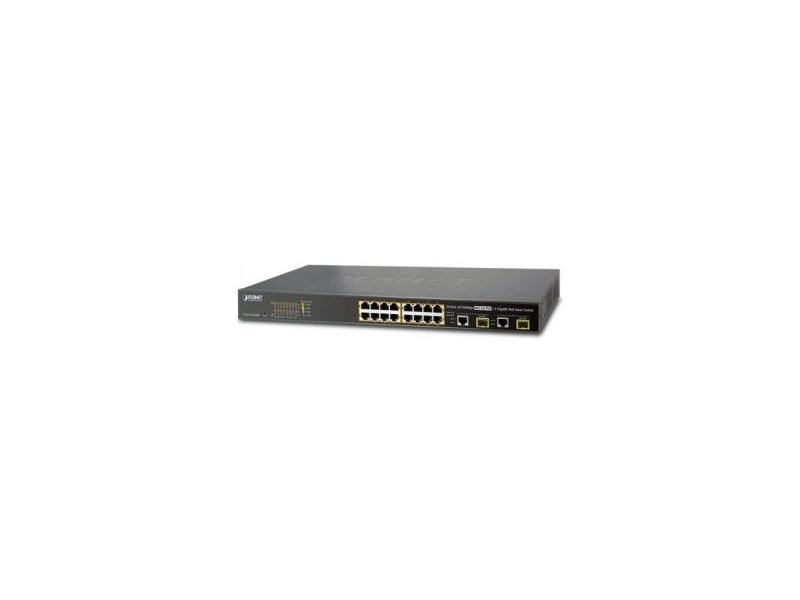

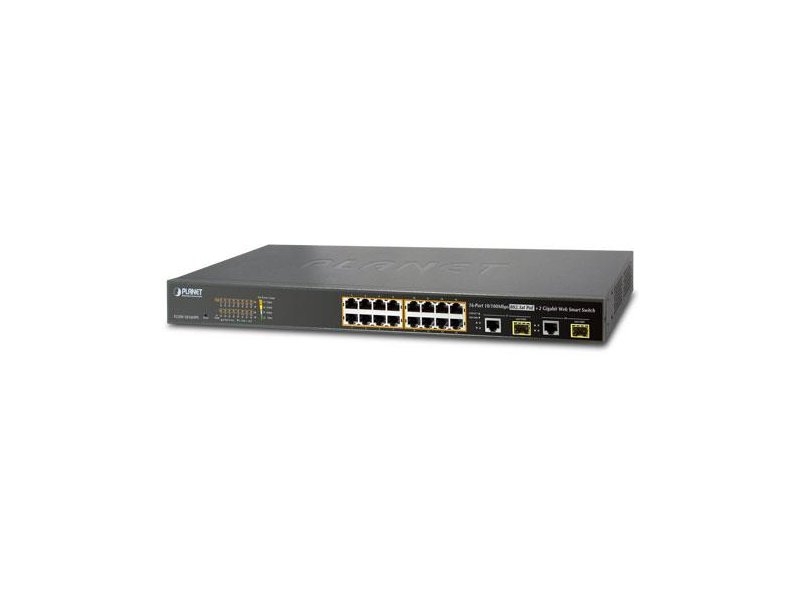

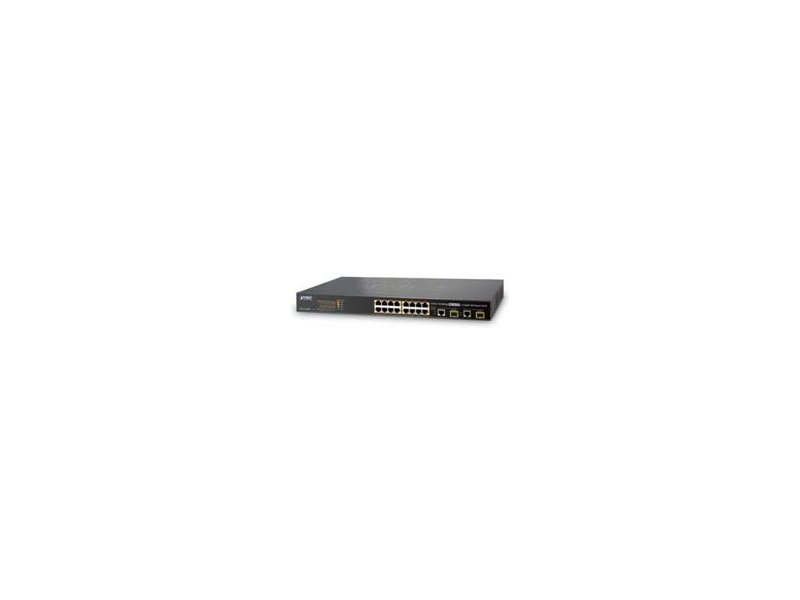

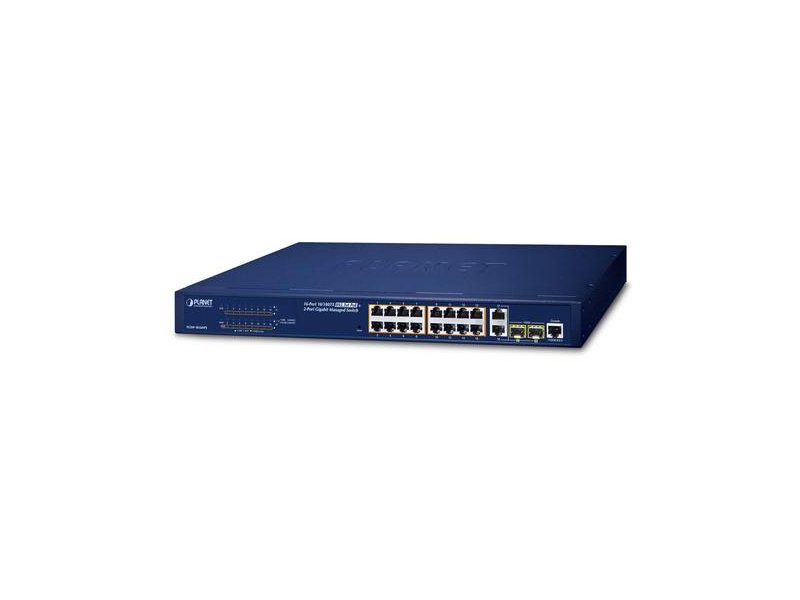

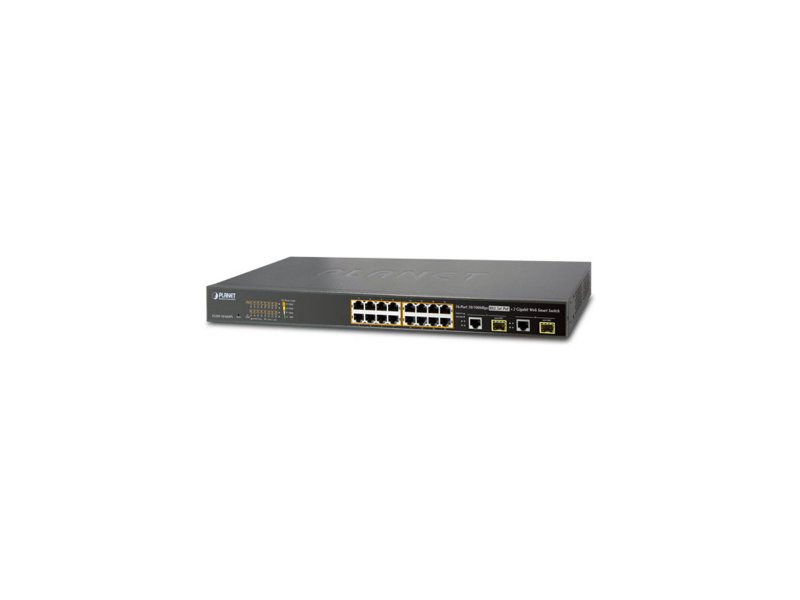

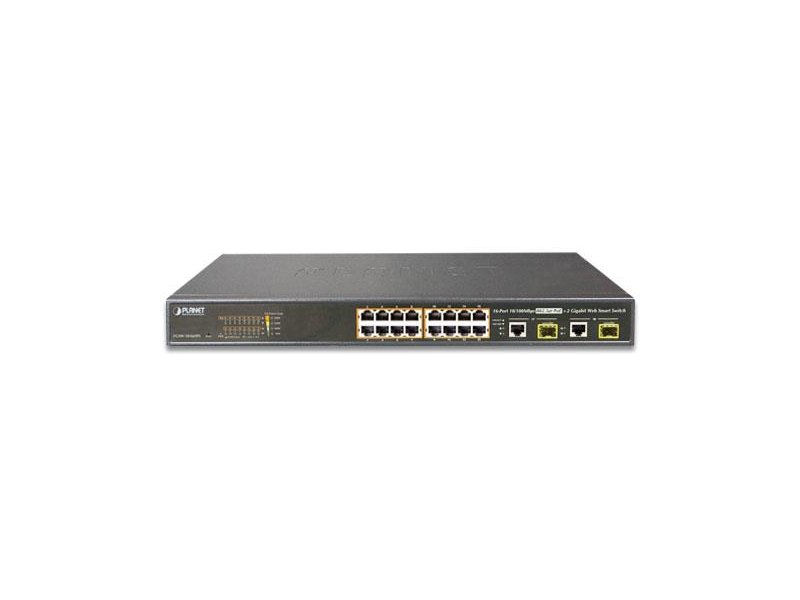

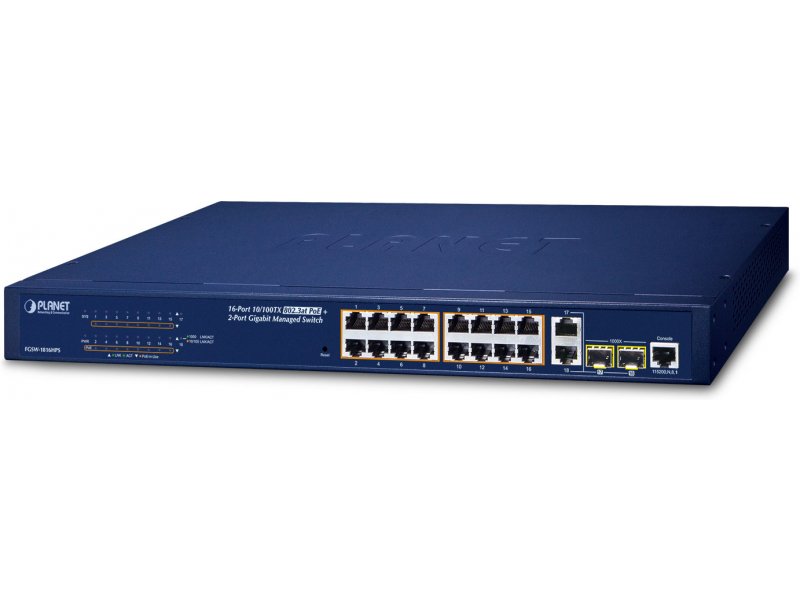

PLANET 16-Port 10/100TX 802.3at PoE + 2-Port Gigabit TP/SFP
Product images are
for illustrative purposes only
Brand:
PLANET
OX.ee Item Code:1158977
Product code: FGSW-1816HPS
EAN:
- 4711605280129
Warranty: 12 months
| Type | 16-Port 10/100TX 802.3at PoE + 2-Port Gigabit TP/SFP Combo Web Smart Ethernet Switch |
| Weight | 2.550 Kg |
| Interface | 16 x 10/100Base-TX RJ-45 Auto-MDI/MDI-X ports2 x 10/100/1000Base-T RJ-45 Auto-MDI/MDI-X ports2 x 1000Base-X SFP interfaces, shared with Port-17 to Port-18 |
| Power | 100~240V AC, 50/60Hz, 4A |
| Manufacturer Datasheet | link |
| Features & Benefits | Ideal Solution for Secure IP Surveillance InfrastructurePerfect Integration Solution for IP PoE Camera and NVR SystemIntelligent LED Indicator for Real-time PoE UsagePoE Schedule for Energy Saving |
| Standard | IEEE 802.3 EthernetIEEE 802.3u Fast EthernetIEEE 802.3ab Gigabit EthernetIEEE 802.3z Gigabit EthernetIEEE 802.3x Full-duplex flow control |
| Duplex | Half / Full |
| MAC Address Table | 4 K |
| LED | System: Power (Green)10/100Base-TX RJ45 Interfaces (Port1 to Port16): 10/100Mbps LNK/ACT (Green); PoE In-Use (Orange)10/100/1000Base-T RJ45 / SFP Interfaces (Port17 to Port18): LNK/ACT (Green); 100/1000 (Green) |
| Data Buffer | 2.75 Mb |
| Data Transfer Rate | Throughput (packet per second): 5.35Mpps@64BytesSwitch Fabric: 7.2Gbps / non-blockingShared Data Buffer: 2.75Mb |
| Warranty | 2 years |
| Width | 440 mm |
| Depth | 200 mm |
| Height | 44.5 mm |
