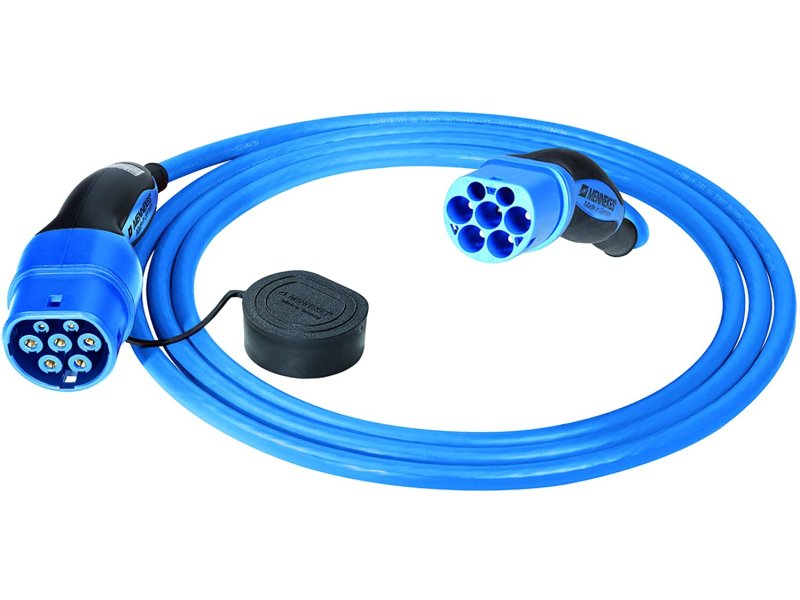

Mennekes charging cable Mode 3, type 2, 32A, 3PH (blue/black, 7.5 meters)

Charging cable mode 3, type 2, 32A, 3PH
The Mennekes charging cable 36247 is approx. 7.5 meters long. It is splash-proof according to IP44. The mobile charging line with type 2 vehicle charging connector and type 2 infrastructure charging connector is used to charge electric vehicles and is compatible with type 2 infrastructure charging sockets at charging stations for electromobility and wall boxes. The charging cable is designed for up to 32 A, charging capacity max. 22 kW. Robust quality and overrun security ensure long-term use.
Type: cable
Color: blue/black
EAN code: 4015394272847
Manufacturer part number: 36247
Made in Germany
Charging function: charging mode 3
Application example: For charging electric cars at charging stations or wall boxes
Area: power supply
Connection: from | 1x charging station type 2 (plug)
Connection: to | 1x vehicle charging connector type 2
Taps: 2
Properties: external
Feature: protection class IP44, protective cap
Additional information: Rated voltage 400 volts, 3-phase current, charging capacity max. 22 kW, max. current 32 A
Cable length: 7.5 meters
Weight: 4.4kg
