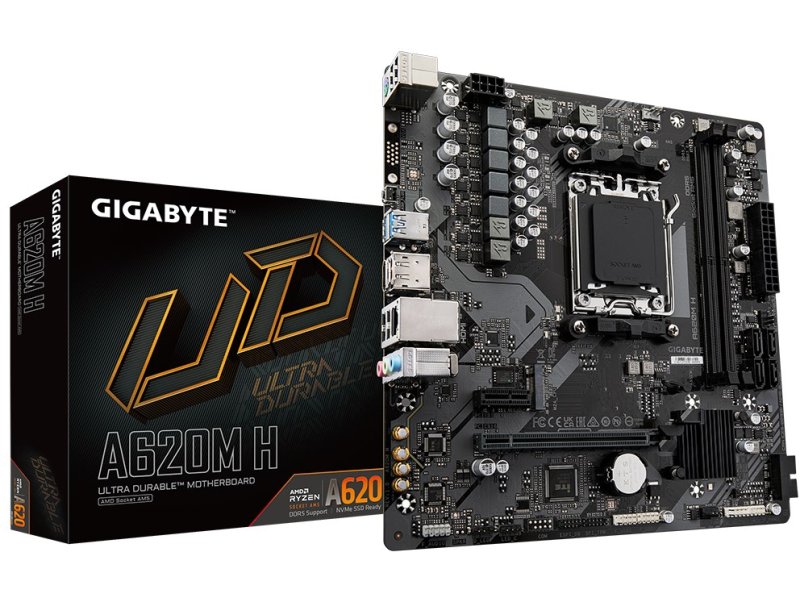

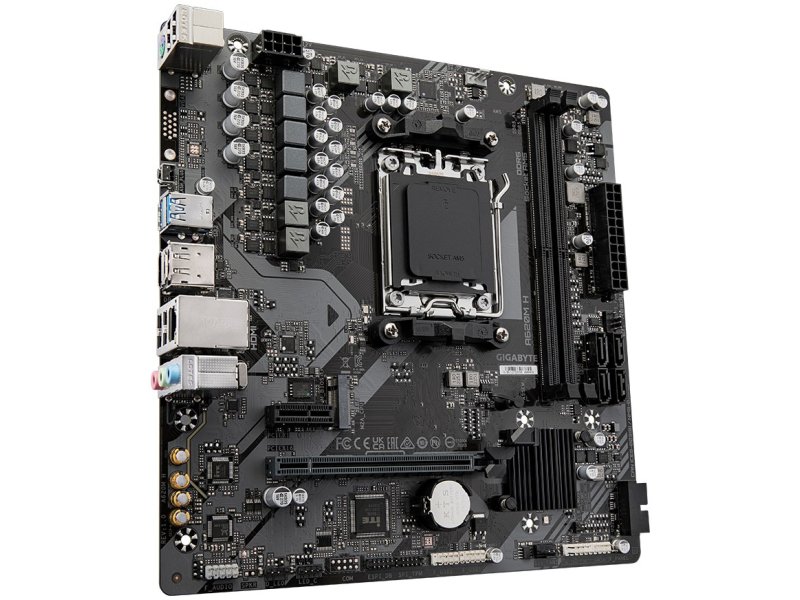

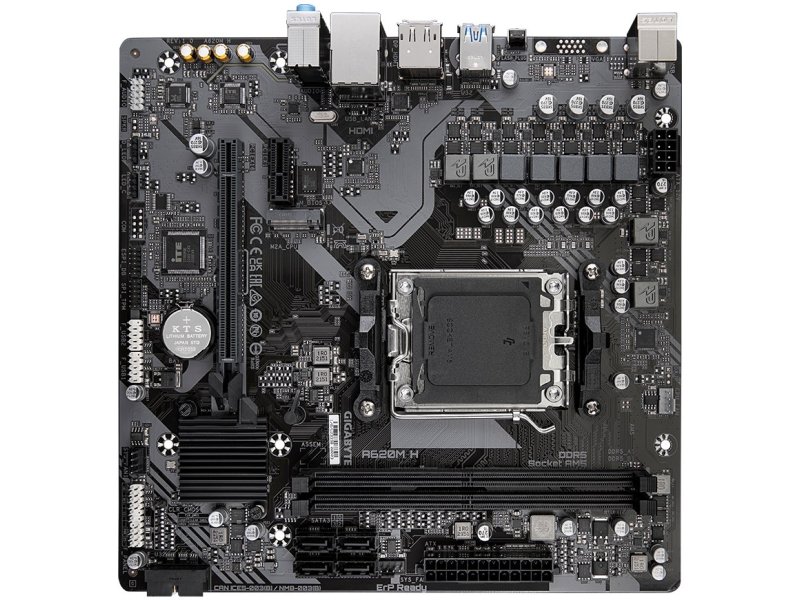

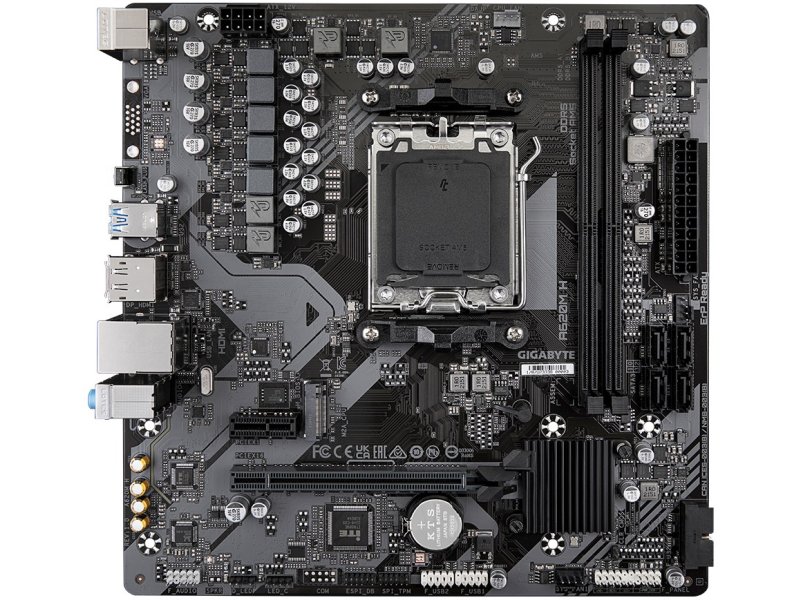

Gigabyte Mainboard||AMD A620|SAM5|Micro-ATX|Memory DDR5|Memory slots 2|1xPCI-Express 3.0 16x|1xPCI-Express 4.0 16x|1xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|2xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|A620MH1.2
Brand:
Gigabyte
OX.ee Item Code:2560321
Product code: A620MH1.2
EAN:
- 4719331855512
Warranty: 36 months
Battery Type | CR2032 |
MOTHERBOARD CHIPSET | AMD A620 |
CABLES INCLUDED | SATA |
Width | 230 mm |
Depth | 225 mm |
Height | 35 mm |
Package Weight | 897 g |
Battery Technology | Lithium-Manganese Dioxide (LiMnO2) |
Maximum Resolution | 4096 x 2160 pixels |
BIOS Type | UEFI AMI |
Raid Support | Yes |
Raid Levels | 0 |
USB 2.0 connectors | 2 |
Number of memory slots | 2 |
Batteries Included | Yes |
Processor Socket | Socket AM5 |
Maximum internal memory | 128 GB |
Supported memory clock speeds | 6200 |
Package width | 265 mm |
Package depth | 265 mm |
Package height | 54 mm |
Battery weight | 3 g |
HDMI ports quantity | 1 |
USB 2.0 ports quantity | 4 |
HDCP | Yes |
Windows operating systems supported | Windows 11 x64 |
Unbuffered memory | Yes |
Ethernet LAN (RJ-45) ports | 1 |
Ethernet LAN | Yes |
Ethernet interface type | Gigabit Ethernet |
Number of battery cells | 1 |
Audio output channels | 7.1 channels |
USB connector type | USB Type-A |
HDMI version | 2.1 |
DisplayPorts quantity | 1 |
Supported memory types | DDR5-SDRAM |
Memory slots type | DIMM |
Memory channels | Dual-channel |
Compatible processor series | AMD Ryzen 7000 Series |
CPU fan connector | Yes |
ATX Power connector (24-pin) | Yes |
TPM connector | Yes |
Number of SATA III connectors | 4 |
Number of M.2 (M) slots | 1 |
PS/2 ports quantity | 1 |
Motherboard chipset family | AMD |
Motherboard form factor | micro ATX |
Clear CMOS jumper | Yes |
DisplayPort version | 1.4 |
Supported processor sockets | Socket AM5 |
Front panel audio connector | Yes |
Processor manufacturer | AMD |
EPS power connector (8-pin) | Yes |
Supported storage drive interfaces | M.2, SATA III |
Supported storage drive types | HDD & SSD |
Number of storage drives supported | 5 |
PCI Express x16 slots | 1 |
PCI Express x1 slots | 1 |
PC health monitoring | Water cooling |
RGB LED pin header | Yes |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
Number of HDDs supported | 4 |
Total number of SATA connectors | 4 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
Desktop Management Interface (DMI) version | 2.7 |
Front panel connector | Yes |
12V power connector | Yes |
HDCP version | 2.3 |
Supported memory clock speed (max) | 7200 MHz |
Warranty period | 3 year(s) |
Number of audio jack connectors | 3 |
Lithium weight per battery | 0.07 g |
ECC сompatibility | Non-ECC |
