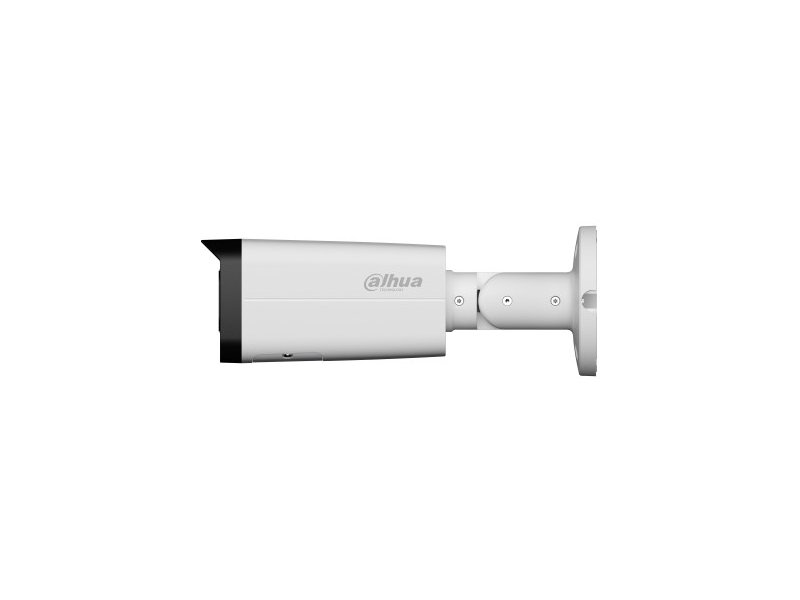

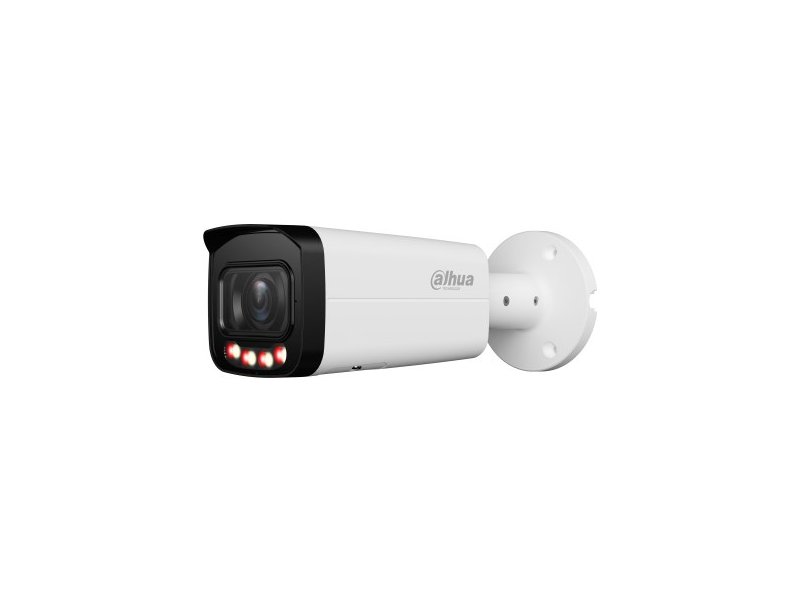

DAHUA IP Network Camera 4MP HFW2449T-ZAS-IL

Camera Image Sensor 1/2.9" CMOS Max. Resolution 2688 (H) x 1520 (V) ROM 128 MB RAM 128 MB Scanning System Progressive Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s Min. Illumination 0.006 [email protected] (Color, 30 IRE) 0.0006 [email protected] (B/W, 30 IRE) 0 lux (Illuminator on) S/N Ratio >56 dB Illumination Distance Up to 60 m (196.85 ft) (IR) Up to 60 m (196.85 ft) (Warm light) Illuminator On/Off Control Auto;Manual Illuminator Number 4 (Multi-core (IR + warm) light) Angle Adjustment Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° Lens Lens Type Motorized vari-focal Lens Mount ?14 Focal Length 2.7 mm–13.5 mm Max. Aperture F1.5 Field of View H: 97°–28°; V: 52°–16°; D: 117°–32° Iris Control Fixed Close Focus Distance 0.8 m (2.62 ft) DORI Distance Lens Detect Observe Recognize Identify 2.7 mm–13.5 mm 210.0 m( 209.97 ft) 84.0 m( 83.99 ft) 42.0 m( 41.99 ft) 21.0 m ( 20.99 ft) DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. Intelligence IVS (Perimeter Protection) Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) SMD SMD Plus Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos Video Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) Smart Codec Smart H.265+; Smart H.264+ Video Frame Rate Main stream: 2688 x 1520@(1–20 fps )/2560 x 1440@ (1–25/30 fps) sub stream: 704 x 576@(1–25 fps)/704 x 480@(1–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. Stream Capability 2 streams Resolution 4M (2688 x 1520/2560 x 1440); 3M (2304 x 1296); 1080p (1920 x 1080); 1.3M (1280 x 960); 720p (1280 x 720); D1 (704 x 576/704 x 480); VGA (640 x 480); CIF (352 x 288/352 x 240) Bit Rate Control VBR;CBR Video Bit Rate H.264: 32 kbps–6144 kbps; H.265: 12 kbps–6144 kbps Day/Night Auto(ICR)/Color/B/W BLC Yes HLC Yes WDR 120 dB White Balance Auto; natural; street lamp; outdoor; manual; regional custom Gain Control Auto/Manual Noise Reduction 3D NR Motion Detection OFF/ON (4 areas, rectangular) Region of Interest (RoI) Yes (4 areas) Smart Illumination Yes Smart Dual Light Yes Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 x 1520 resolution and lower) Mirror Yes Privacy Masking 4 areas Audio Built-in MIC Yes, built-in Mic Audio Compression G.711a; G.711Mu; G.726; PCM Alarm Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; defocus detection;external alarm;SMD; security exception Network Network Port RJ-45 (10/100 Base-T) Network Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P Interoperability ONVIF (Profile S & Profile T & Profile G); CGI User/Host 6 (Total bandwidth: 36 M) Storage FTP; SFTP; Micro SD card (support max. 256 GB) Browser IE Chrome Firefox Management Software Smart PSS Lite; DSS; DMSS; DoLynk Care Mobile Client iOS;Android Cyber Security Video encryption;Configuration encryption;Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade Certification Certifications CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU Port Audio Input 1 channel (RCA port) Audio Output 1 channel (RCA port) Alarm Input 1 channel in: wet contact, 5 mA 3–5 VDC Alarm Output 1 channel out: wet contact, 300 mA 12 VDC Power Power Supply 12 VDC; PoE (802.3af) Power Consumption Basic: 2.6 W (12 VDC), 3.1 W (PoE); Max.: 10.2 W (12 VDC), 12.7 W (PoE) (H.265 + intelligence on+ WDR + warm light intensity) Environment Operating Temperature –30 °C to +60 °C (–22 °F to +140 °F) Operating Humidity ?95% (RH), non-condensing Storage Temperature –30 °C to +60 °C (–22 °F to +140 °F) Storage Humidity ?95% (RH), non-condensing Protection IP67; IK10 (optional) Structure Casing Material Metal Product Dimensions 238.5 mm x 90.7 mm x 90.7 mm (9.39" x 3.57" x 3.57") (L x W x H) Net Weight 0.76 kg (1.68 lb) Gross Weight 0.95 kg (2.09 lb)
