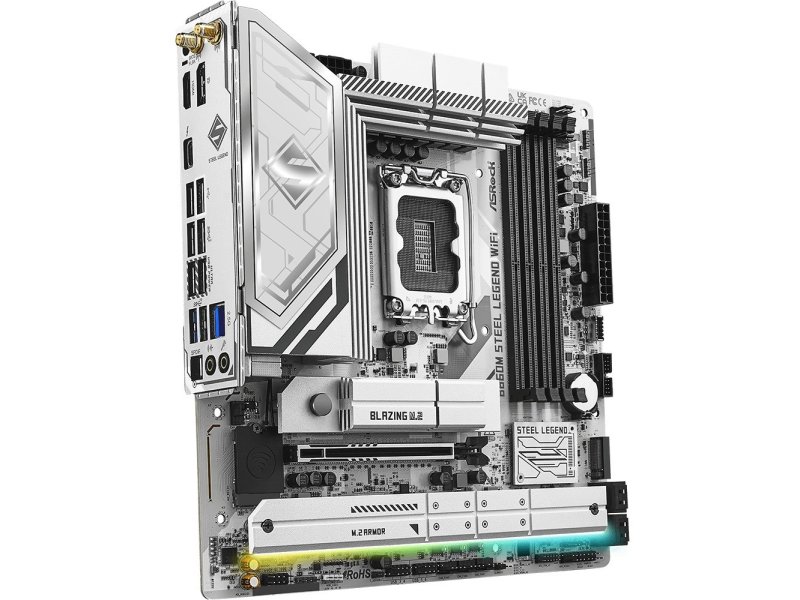

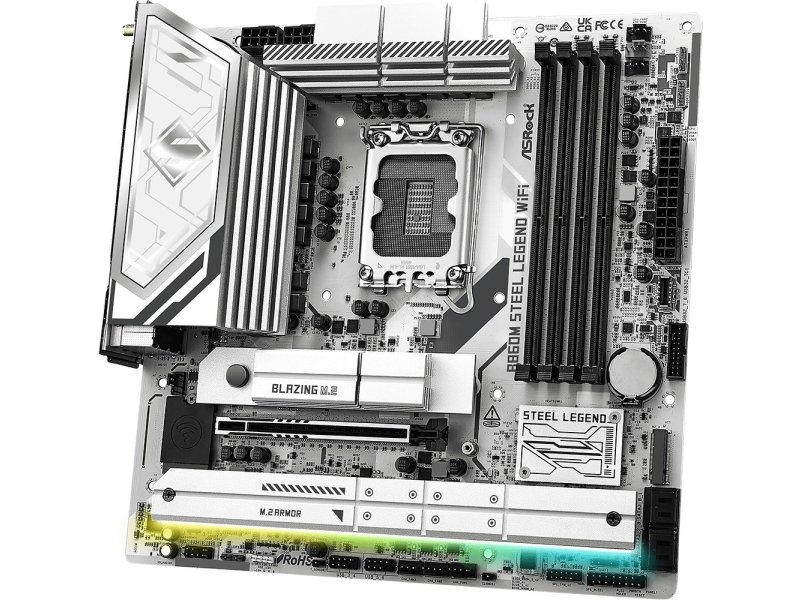

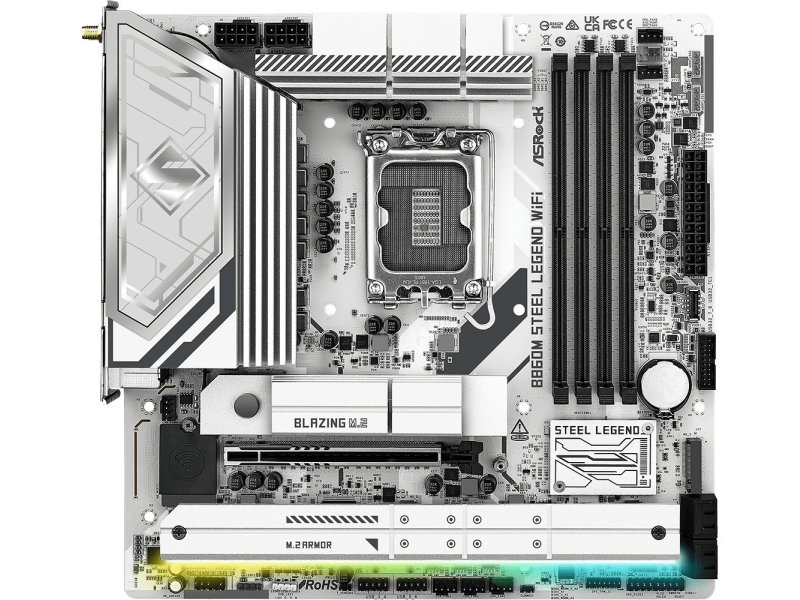

ASROCK B860M Steel Legend WiFi motherboard
Product images are
for illustrative purposes only
Brand:
ASRock
OX.ee Item Code:2889194
Product code: B860M Steel Legend WiFi
EAN:
- 4711581490215
Warranty: 36 months
| BLUETOOTH | Yes |
| MOTHERBOARD CHIPSET | Intel B860 |
| Width | 244 mm |
| Depth | 244 mm |
| Maximum Resolution | 7680 x 4320 pixels |
| BIOS Type | UEFI AMI |
| Wi-Fi | Yes |
| Raid Support | Yes |
| Raid Levels | 5 |
| LAN controller | Dragon RTL8125BG |
| USB 2.0 connectors | 4 |
| Number of memory slots | 4 |
| Processor Socket | LGA 1851 (Socket V1) |
| Bluetooth Version | 5.3 |
| Maximum internal memory | 256 GB |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| HDMI ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| HDCP | Yes |
| Windows operating systems supported | Windows 11 x64 |
| Unbuffered memory | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Headphone outputs | 1 |
| Audio output channels | 7.1 channels |
| USB connector type | USB Type-A |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| Antennas quantity | 2 |
| Supported memory types | DDR5-SDRAM |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Compatible processor series | Intel Core Ultra (Series 2) |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of chassis fan connectors | 4 |
| TPM connector | Yes |
| Number of SATA III connectors | 4 |
| Number of M.2 (M) slots | 4 |
| Motherboard chipset family | Intel |
| Motherboard form factor | micro ATX |
| DisplayPort version | 1.4 |
| Supported processor sockets | LGA 1851 |
| Front panel audio connector | Yes |
| Processor manufacturer | Intel |
| EPS power connector (8-pin) | Yes |
| S/PDIF out port | Yes |
| Thunderbolt ports quantity | 1 |
| Supported storage drive interfaces | PCI Express 4.0, PCI Express 5.0, SATA III |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 8 |
| MU-MiMO | Yes |
| Product colour | White |
| Top Wi-Fi standard | Wi-Fi 6E (802.11axe) |
| RGB LED pin header | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Audio chip | Realtek ALC1220 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| 12V power connector | Yes |
| PCI Express x16 (Gen 5.x) slots | 1 |
| On-board graphics card family | Intel Iris Xe Graphics |
| MIC input | 1 |
| Number of USB 3.2 Gen 1 ports | 4 |
| Flashback BIOS button | Yes |
| ECC сompatibility | Non-ECC |
| Number of RGB LED pin headers | 1 |
| Number of water pump connectors | 1 |
| Number of EPS power connectors (8-pin) | 2 |
| Number of CPU fan connectors | 2 |
| 4th M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 1st M.2 largest key size | 2280 |
| 4th M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 2280 |
| 2nd M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| Number of USB 3.2 Gen 2 Type-C ports | 1 |
| Warnings | In case of installation problems, contact a qualified service technician. |
| Addressable LED connectors | 3 |
