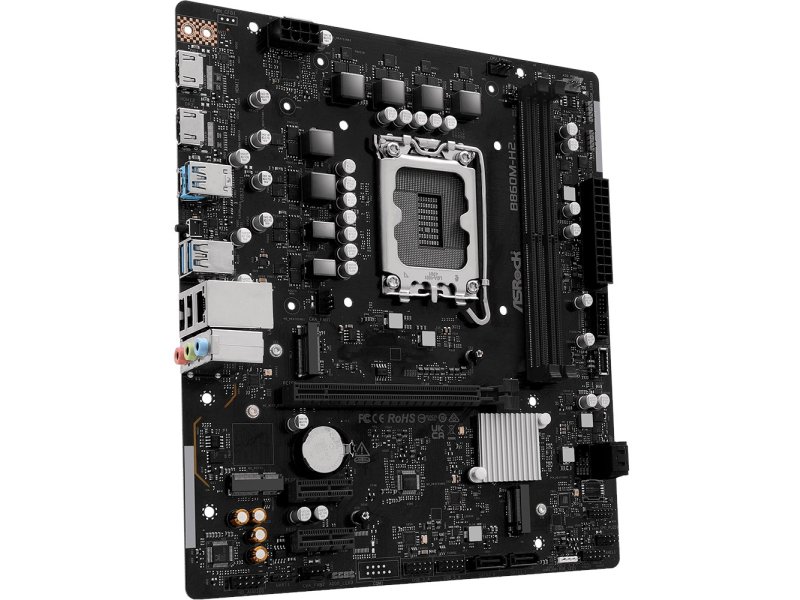

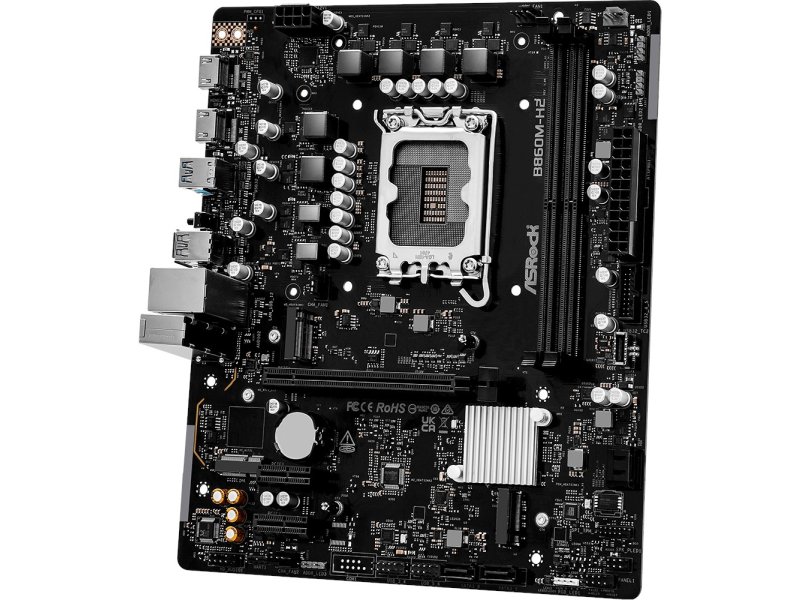

Asrock B860M-H2 motherboard
Product images are
for illustrative purposes only
| BLUETOOTH | No |
| MOTHERBOARD CHIPSET | Intel B860 |
| Width | 244 mm |
| Depth | 211 mm |
| BIOS Type | UEFI AMI |
| Wi-Fi | No |
| Raid Support | Yes |
| Raid Levels | 1 |
| LAN controller | Realtek 8111H |
| USB 2.0 connectors | 2 |
| Number of memory slots | 2 |
| Processor Socket | LGA 1851 (Socket V1) |
| Maximum internal memory | 128 GB |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| HDMI ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| Windows operating systems supported | Windows 11 x64 |
| Unbuffered memory | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Audio output channels | 7.1 channels |
| USB connector type | USB Type-C |
| HDMI version | 2.1 |
| Antennas quantity | 2 |
| Supported memory types | DDR5-SDRAM |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of chassis fan connectors | 2 |
| TPM connector | Yes |
| Number of SATA III connectors | 4 |
| Number of M.2 (M) slots | 2 |
| Motherboard chipset family | Intel |
| Motherboard form factor | micro ATX |
| Supported processor sockets | LGA 1851 |
| Processor manufacturer | Intel |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
| Supported storage drive types | HDD & SSD |
| RGB LED pin header | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| Audio chip | Realtek ALC897 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| 12V power connector | Yes |
| Flashback BIOS button | Yes |
| ECC сompatibility | Non-ECC |
| Number of RGB LED pin headers | 1 |
| Number of water pump connectors | 1 |
| Number of CPU fan connectors | 1 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 4.0 |
| Number of USB 3.2 Gen 2 Type-C ports | 1 |
| Warnings | When disposing of the product, follow local regulations for the recycling of electronics. |
