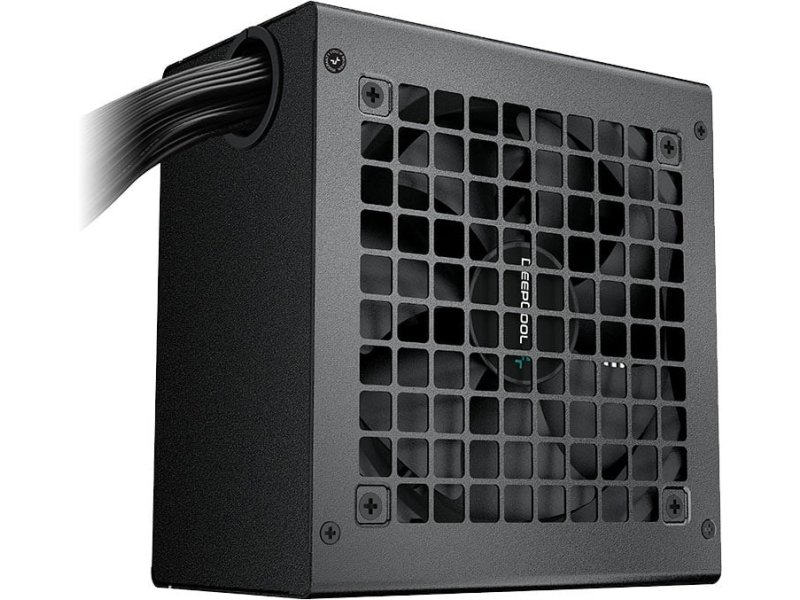

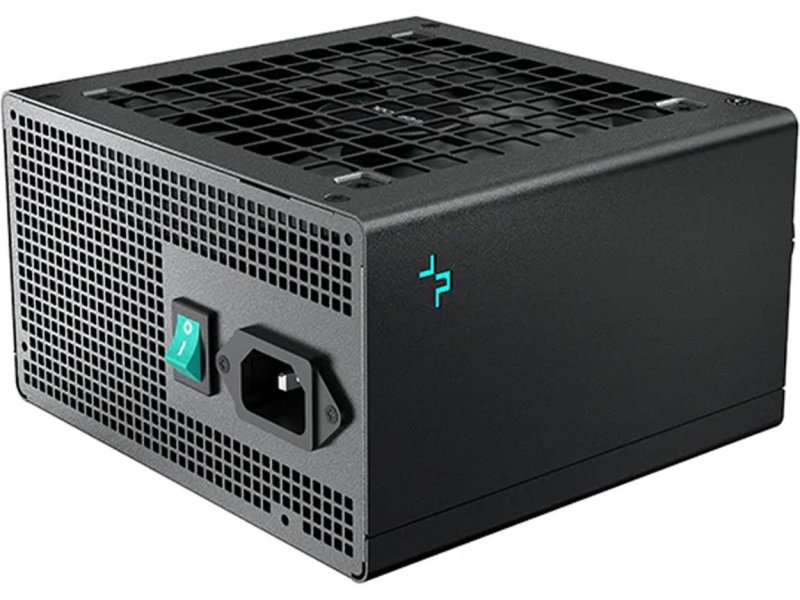

Deepcool Power Supply PK550D 550W Bronze
Brand:
DEEPCOOL
OX.ee Item Code:2946453
Product code: R-PK550D-FA0B-JGEU
EAN:
- 6933412739999
Warranty: 24 months
AC Input Voltage | 100 - 240 V |
AC Input Frequency | 50/60 Hz |
Package Type | Box |
Efficiency | 85% |
Width | 150 mm |
Depth | 140 mm |
Height | 86 mm |
Fan Diameter | 12 cm |
Cooling type | Active |
Number of fans | 1 fan(s) |
Total power | 550 W |
80 PLUS Certification | 80 PLUS Bronze |
Cabling Type | Non-Modular |
Operating temperature (T-T) | 0 - 40 °C |
Mean time between failures (MTBF) | 100000 h |
Combined power (+12V) | 546 W |
Combined power (+3.3V) | 110 W |
Combined power (+5V) | 110 W |
Combined power (-12V) | 3.6 W |
Max output current (+3.3V) | 20 A |
Max output current (+5V) | 20 A |
Max output current (-12V) | 0.3 A |
Max output current (+5Vsb) | 2.5 A |
Max output current (+12V) | 45,5 A |
Purpose | PC |
Power protection features | Over voltage |
On/off switch | Yes |
Motherboard power connector | 24-pin ATX |
Power Factor Correction (PFC) type | Active |
Fan location | Top |
ATX version | 2.4 |
Bearing technology | HDB |
Hold time | 16 ms |
Product colour | Black |
Power supply unit (PSU) form factor | ATX |
Motherboard power cable length | 50 cm |
Power Good signal delay range | 100 - 150 ms |
Compliance certificates | RoHS |
