METZ CONNECT 130861-0602-E patch panel

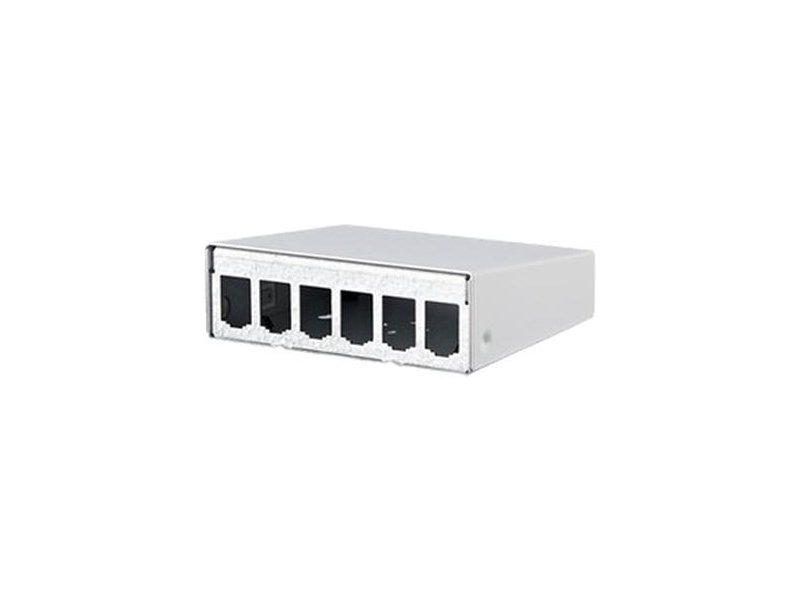

— Surface-mounted, unequipped module housing for individual modules in modul design.- Solid steel sheet housing.- Upper part of the housing powder-coated in RAL 9010.- Upper part of the housing can be put on and removed easily because no screws are used for fastening.- Equipotential bonding possible by means of contact pin.- Additional strain relief on lower part of housing using cable ties.- Suitable for direct wall mounting, as desktop device and for DIN-rail mounting using the DIN rail adapter mini FS.- Bottom of the 3-port and 4-port housing can be removed. Additional fastening by means of 60 mm fastening clearance.- Optionally available and fits in all housings: mini splice tray.- Optionally available 2 x 12 housing: Strain relief for patch cords 130861-24ZE-E.- Variants: 3, 4, 6, 8, 12, 16 and 2 x 12 ports.METZ CONNECT 130861-0602-E. Product colour: White, Material: Aluminium, Zinc, Steel, Certification: RoHS. Width: 125 mm, Height: 43.6 mm, Depth: 110 mm. Package width: 135 mm, Package length: 5.2 cm, Package height: 133 mm
