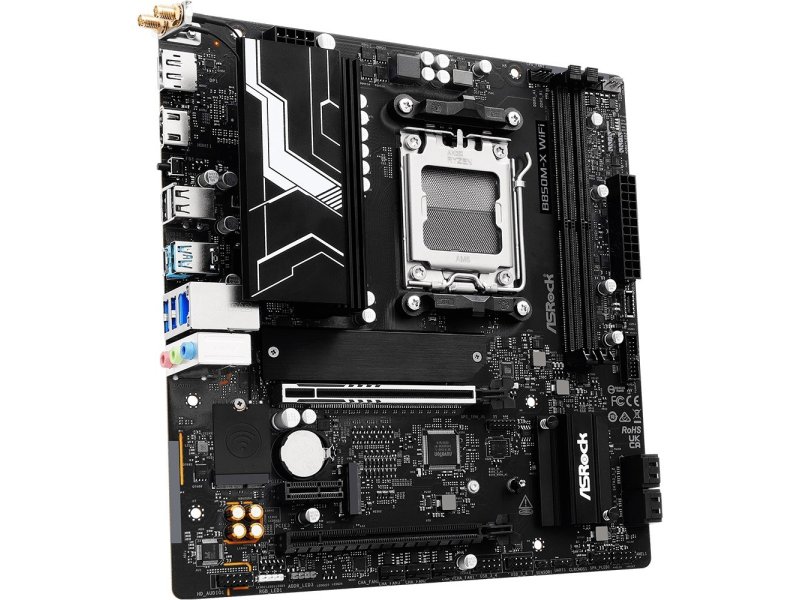

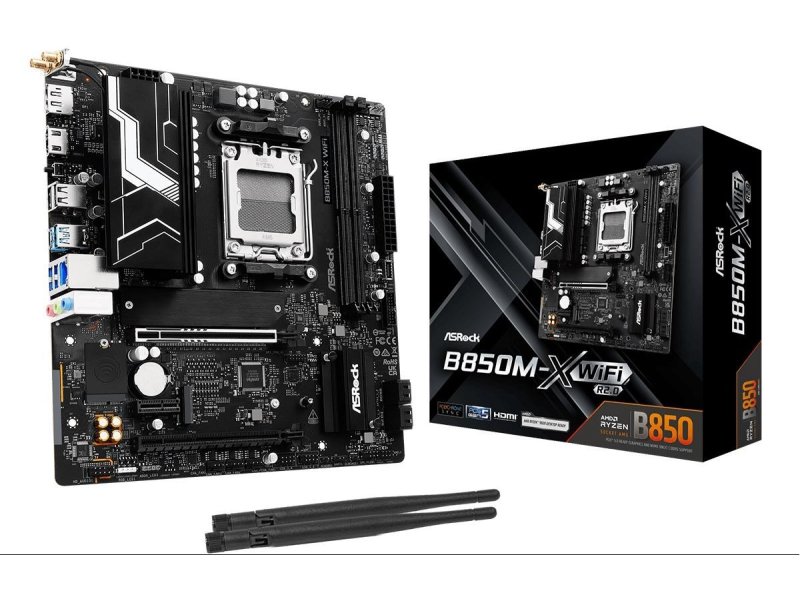

Asrock B850M-X WiFi R2 AMD B850 Socket AM5 micro ATX
Product images are
for illustrative purposes only
Brand:
Asrock
OX.ee Item Code:3159783
Product code: B850M-X WIFI R2.0
EAN:
- 4711581490765
Warranty: 36 months
| BLUETOOTH | Yes |
| Audio output | 3.5 mm |
| MOTHERBOARD CHIPSET | AMD B850 |
| CABLES INCLUDED | SATA |
| Width | 244 mm |
| Depth | 226 mm |
| Maximum Resolution | 3840 x 2160 pixels |
| BIOS Type | UEFI AMI |
| Wi-Fi | Yes |
| Raid Support | Yes |
| Raid Levels | 1 |
| LAN controller | Dragon RTL8125BG |
| USB 2.0 connectors | 2 |
| Number of memory slots | 2 |
| Processor Socket | Socket AM5 |
| Bluetooth Version | 5.2 |
| Maximum internal memory | 128 GB |
| HDMI ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| HDCP | Yes |
| Windows operating systems supported | Windows 11 x64 |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Audio output channels | 7.1 channels |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| Mobile network connection | No |
| Supported memory types | DDR5-SDRAM |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Compatible processor series | AMD Ryzen 9000 Series |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of chassis fan connectors | 3 |
| TPM connector | Yes |
| Number of SATA III connectors | 4 |
| Number of M.2 (M) slots | 2 |
| Microphone in | Yes |
| Motherboard chipset family | AMD |
| Motherboard form factor | micro ATX |
| Parallel processing technology support | Not supported |
| DisplayPort version | 1.4 |
| Line-in | Yes |
| Supported processor sockets | Socket AM5 |
| Front panel audio connector | Yes |
| Processor manufacturer | AMD |
| EPS power connector (8-pin) | Yes |
| Supported storage drive interfaces | PCI Express 4.0, PCI Express 5.0, SATA III |
| Supported storage drive types | HDD & SSD |
| Screws included | Yes |
| MU-MiMO | Yes |
| Product colour | Black |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| RGB LED pin header | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Audio chip | Realtek ALC897 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| 12V power connector | Yes |
| Number of M.2 (E) slots | 1 |
| PCI Express x1 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| ECC сompatibility | ECC & Non-ECC |
| Number of RGB LED pin headers | 1 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of CPU fan connectors | 2 |
| 1st M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| Warnings | Dispose of in accordance with local regulations for electronic waste. |
