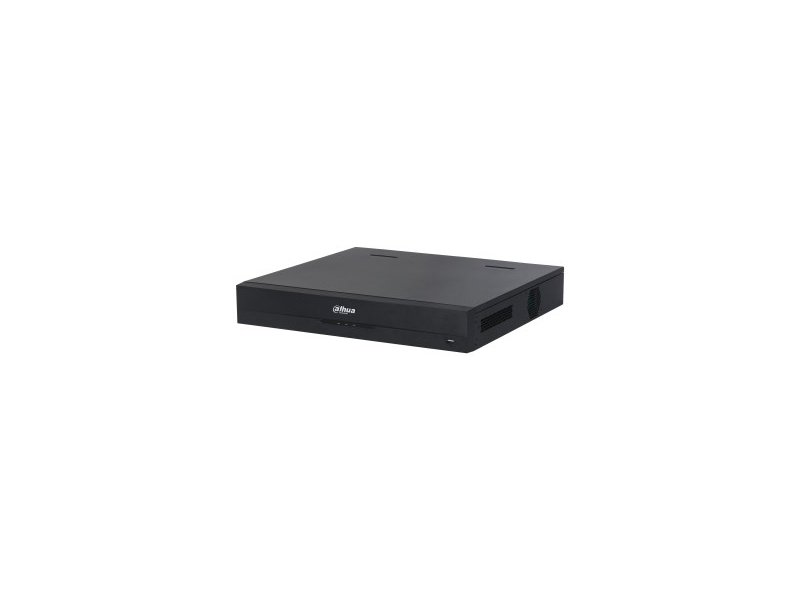

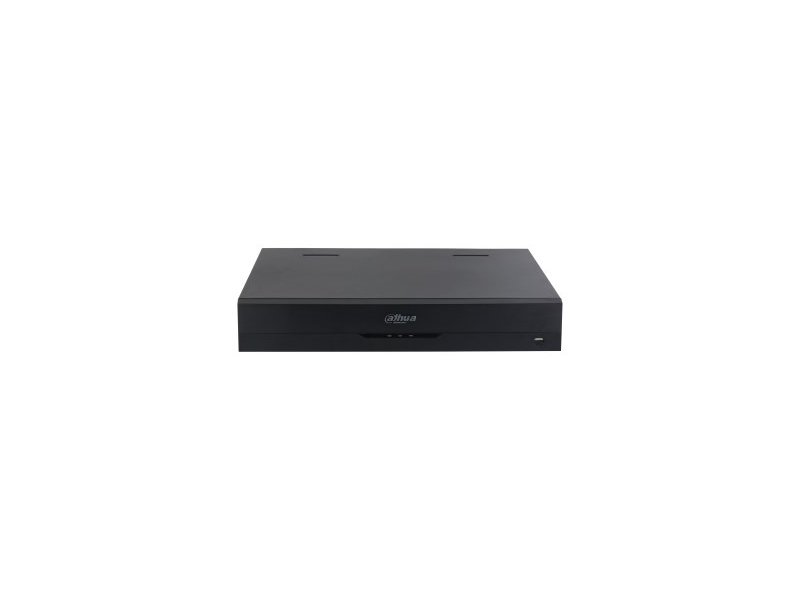

IP Network recorder 64channels NVR5464-EI

System Main Processor Industrial-grade processor Operating System Embedded Linux Operating Interface Web, Local GUI AI AI by Recorder Face detection; face recognition; perimeter protection; SMD Plus AI by Camera Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map Perimeter Protection Perimeter Performance AI by Recorder (Number of Channels) 4 channels, 10 IVS rules for each channel Perimeter Performance of AI by Camera (Number of Channels) 16 channels Face Detection Face Attributes Gender; age group; glasses; expressions; face mask; beard Face Detection Performance of AI by Recorder (Number of Channels) 2 channels (up to 12 face images/s each channel) Face Detection Performance of AI by Camera (Number of Channels) 16 channels Face Recognition Face Database Capacity Up to 20 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image. Face Recognition Performance of AI by Recorder (Number of Channels) 1. 16-channel FD (by camera) + FR (by recorder), image stream: 16 face images/s
2. 2-channe FD (by recorder) + FR (by recorder), video stream: 12 face images/s Face Recognition Performance of AI by Camera (Number of Channels) 16 channels SMD Plus SMD Plus by Recorder 8 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change SMD Plus by Camera 16 channels Video Metadata Metadata Performance of AI by Camera (Number of Channels) 8 channels Human Attributes Top color, top type, bottom color, bottom type, hat, bag, age, gender and umbrella Motor Vehicle Attributes License plate, plate color, vehicle body, vehicle model, vehicle logo, calling, seatbelt, vehicle interior, vehicle registration location. Non-motor Vehicle Attributes Vehicle model, vehicle color, number of persons, helmet. Vehicle License Plate Comparison ANPR by Camera (Number of Channels) 8 channels License Plate Database Capacity 1. Create up to 20,000 plate numbers.
2. Blocklist and allowlist Audio and Video Access Channel 64 Network Bandwidth AI disabled: 384 Mbps incoming, 384 Mbps recording and 384 Mbps outgoing
AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing Resolution 32 MP; 24 MP; 16 MP; 12 MP; 8 MP; 5 MP; 4 MP; 1080p; 720p; D1; CIF; QCIF Decoding Capability AI disabled: 2-channel 32 MP@20 fps; 2-channel 24 MP@20 fps; 4-channel 16 MP@30 fps; 5-channel 12 MP@30 fps; 8-channel 8 MP@30 fps; 12-channel 5 MP@30 fps; 16-channel 4 MP@30 fps; 32-channel 1080p@30 fps
AI enabled: 1-channel 32 MP@20 fps; 1-channel 24 MP@20 fps; 2-channel 16 MP@30 fps; 4-channel 12 MP@30 fps; 4-channel 8 MP@30 fps; 8-channel 5 MP@30 fps; 12-channel 4 MP@30 fps; 24-channel 1080p@30 fps Video Output 2-channel VGA, 2-channel HDMI video output.
Heterogeneous video source output for HDMI1 and HDMI2
Simultaneous video source output for VGA1 and HDMI1
Simultaneous video source output for VGA2 and HDMI2
Supports 4K display Multi-screen Display Main screen: 1/4/8/9/16/25/36/64
Sub screen: 1/4/8/9/16 Third-party Camera Access ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Samsung Compression Standard Video Compression Smart H.265+; H.265; Smart H.264+; H.264; MJPEG Audio Compression G.711a; G.711u; PCM; G726 Network Network Protocol HTTP; HTTPS; TCP/IP; IPv4/IPv6; RTSP; UDP; SNMP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; PPPoE; FTP; DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); Multicast; P2P; Auto Registration Mobile Phone Access iOS; Android Interoperability ONVIF 21.12(Profile T; Profile S; Profile G); CGI; SDK Browser Chrome
IE 9 or later

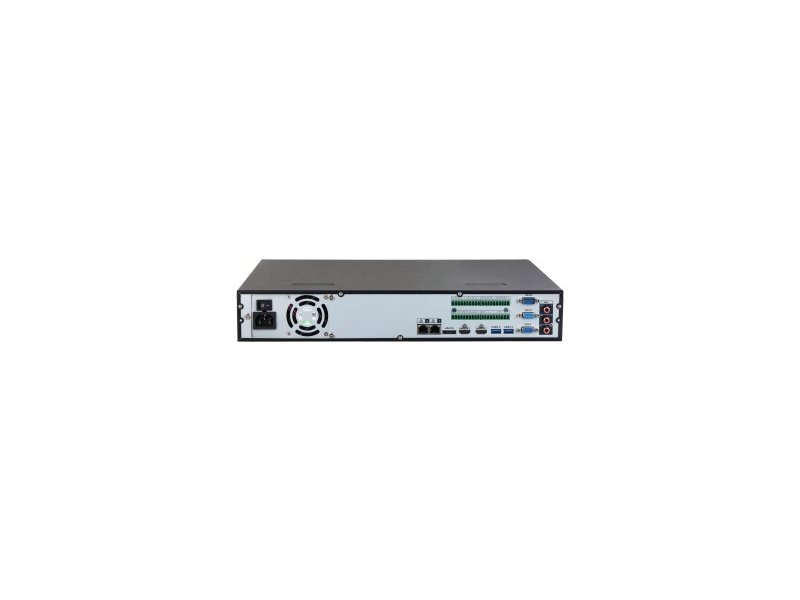

Firefox Network Mode Multi-address mode, load balance, fault tolerance and other network port binding modes Recording Playback Multi-channel Playback Up to 16 channels Record Mode General, motion detection; intelligent; alarm; POS Backup Method USB device and network Playback Mode Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection) Storage Disk Group YES Alarm General Alarm Motion detection; privacy masking; local alarm Anomaly Alarm Camera offline; storage error; disk full; IP conflict; MAC conflict; login lock; abnormal behavior of fan; cybersecurity exception Intelligent Alarm Face detection; perimeter protection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map Alarm Linkage Record; snapshot (panoramic); local alarm output; IPC external alarm output; access controller; audio; buzzer; log, preset; email Port Audio Input 1-channel RCA Audio Output 2-channel RCA Alarm Input 16 channels Alarm Output 6 channels (1-channel 12 V 1 A output) HDD Interface 4 SATA ports, up to 16 TB.The maximum HDD capacity varies with environment temperature. eSATA 1 RS-232 1 RS-485 1 (half-duplex serial communication) USB 3(1 front USB 2.0 port, 2 rear USB 3.0 ports) HDMI 2 VGA 2 Network Port 2 (10/100/1000 Mbps Ethernet port, RJ-45) General Power Supply 100–240 VAC, 50-60 Hz Power Consumption Total output of NVR is? 13 W (without HDD) Net Weight 4.74 kg (10.45 lb) Gross Weight 6.11 kg (13.47 lb) Product Dimensions 440.0 mm × 415.1 mm x 70.0 mm (17.32" × 16.34" × 2.76") (W ×D × H) Packaging Dimensions 530.0 mm × 500.0 mm × 210.0 mm (20.87" × 19.69" × 8.27")(W × D × H) Operating Temperature –10 °C to +55 °C (14 °F to +131 °F) Storage Temperature –20 °C to +60 °C (–4 °F to +140 °F) Operating Humidity 10%–93% (RH) Installation Rack or desktop Certifications FCC: 47 CFR FCC Part15, SubpartB, Class A
CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014
CE-LVD: EN 62368-1:2014
