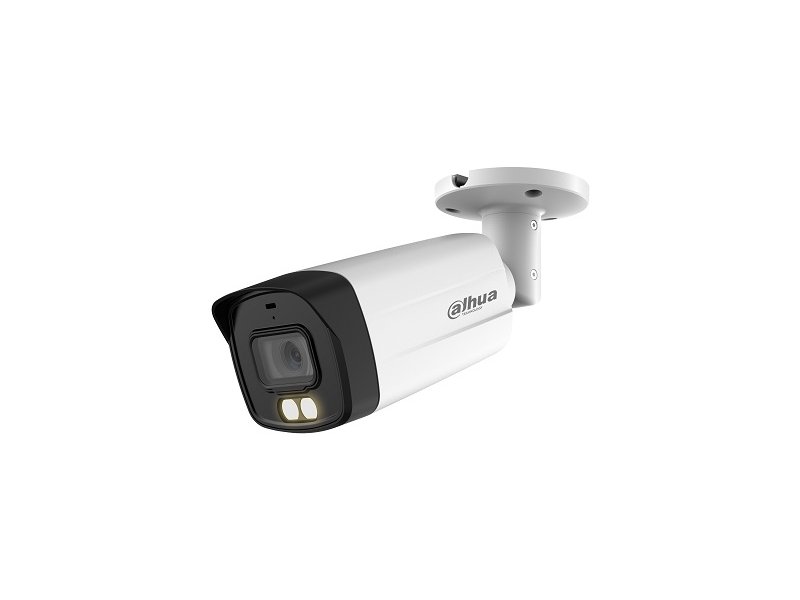

DAHUA TECHNOLOGY CO., LTD HD-CVI kamera HAC-HFW1509TM-IL-A 3.6mm

Camera Pixel 5MP Image Sensor 5MP CMOS Max. Resolution 2880 (H) × 1620 (V) Scanning System Progressive Electronic Shutter Speed PAL: 1/3 s–1/100000 s
NTSC: 1/4 s–1/100000 s Min. Illumination 0.001 [email protected] (Color, 30 IRE)
0.0001 [email protected] (B/W, 30 IRE)
0 lux (Illuminator on) S/N Ratio >65dB Illumination Distance IR: 40 m (131.23 ft)
Warm light: 40 m (131.23 ft) Illuminator On/Off Control Auto; manual Illuminator Number 2 (IR light) 2 (Warm light) Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360° Lens Lens Type Fixed-focal Mount Type M12 Focal Length 3.6 mm Max. Aperture F1.0 Field of View 3.6 mm: H: 89°; V: 47°; D: 104° Iris Control Fixed Close Focus Distance 3.6 mm: 2.2 m (7.22 ft) DORI distance Lens Detect Observe Recognize Identify 3.6 mm 78.0 m (255.91 ft) 31.2 m (102.36 ft) 15.6 m (51.18 ft) 7.8 m (25.59 ft) Video Video Frame Rate CVI:
PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps
NTSC: 5M@30 fps; 4M@30 fps; 1080p@30 fps;
AHD:
PAL: 4M@25 fps;
NTSC: 4M@30 fps;
TVI:
PAL: 4M@25 fps;
NTSC: 4M@30 fps;
CVBS:
PAL: 960H;
NTSC: 960H Resolution 5M (2880 × 1620);
4M (2560 × 1440);
1080p (1920 × 1080);
960H (960 × 576/960 × 480) Day/Night Auto (ICR)/Color/B/W BLC BLC; HLC; WDR; HLC-Pro WDR 120dB White Balance Auto; Area white balance Gain Control Auto; manual Noise Reduction 3D NR Defog Electronic defog Digital Zoom 4× Mirror Yes Privacy Masking Off/On (8 areas, rectangle) Illumination Mode Smart IR&WL; WL Mode; IR Mode Certifications Certifications CE (EN55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EN55024:2010+A1:2015, EN55035:2017, EN50130-4:2011+A1:2014, EN62368-1:2014+A11:2017)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL62368-1+CAN/CSA C22.2 No.62368-1-14) Port Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port Audio Input One channel built-in MIC Power Power Supply 12V ± 30% DC Power Consumption Max 5.7 W (12 VDC, LED on) Environment Operating Temperature –40 °C to +60 °C (–40 °F to 140 °F) Operating Humidity <95% (RH), non-condensing Storage Temperature –40 °C to +60 °C (-40 °F to 140 °F) Protection IP67 Structure Casing Material Metal Product Dimensions 240.7 mm × 90.7 mm × 90.7 mm (9.48" × 3.57" × 3.57") Packaging Dimensions 299 mm × 119mm × 111 mm (11.77" × 4.69" × 4.37") Net Weight 0.7 kg (1.54 lb) Gross Weight 0.89 kg (1.96 lb) Installation Wall mount; ceiling mount; vertical pole mount
