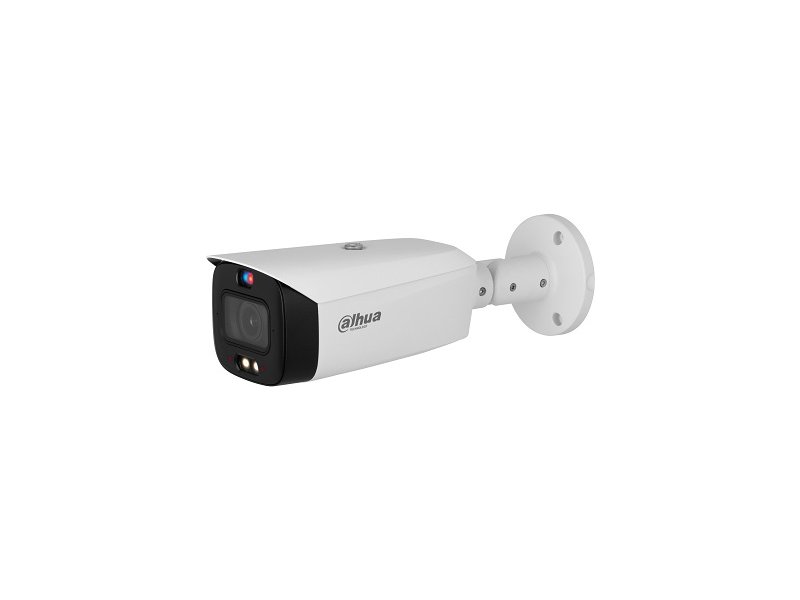

DAHUA IP Network Camera 5MP HFW3549T1-ZAS-PV-S5 2.7-13.5

Camera Image Sensor 1/2.7" CMOS Max. Resolution 2960 (H) x 1668 (V) ROM 256 MB RAM 1 GB Scanning System Progressive Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s Min. Illumination 0.003 [email protected] (Color, 30 IRE)
0.0003 [email protected] (B/W, 30 IRE)
0 lux (Illuminator on) S/N Ratio >56 dB Illumination Distance Up to 50 m (164.64 ft) (IR)
Up to 40 m (131.23 ft) (Warm light) Illuminator On/Off Control Auto;Manual Illuminator Number 2 (IR LED)
2 (warm light) Angle Adjustment Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360° Lens Lens Type Motorized vari-focal Lens Mount ?16 Focal Length 2.7 mm–13.5 mm Max. Aperture F1.0 Field of View H: 113°–36°
V: 57°–20°
D: 137°–40° Iris Control Fixed Close Focus Distance 1.5 m (4.92 ft) DORI Distance Lens Detect Observe Recognize Identify W 65.2 m (213.91 ft) 26.1 m (85.63 ft) 13.0 m (42.65 ft) 6.5 m (21.33 ft) T 186.6 m (612.20 ft) 74.6 m (244.75 ft) 37.3 m (122.38 ft) 18.7 m (61.35 ft) DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. Intelligence IVS (Perimeter Protection) Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) SMD SMD 4.0 AcuPick Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets. AI SSA Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions. Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos Video Video Compression H.265; H.264; H.264H; H.264B; MJPEG (only supported by sub stream) Smart Codec Smart H.265+; Smart H.264+ AI Coding AI H.265; AI H.264 Video Frame Rate Main stream: 2880 x 1620/2960 x 1668@(1–20 fps)/2688 x 1520 @(1–30 fps)
Sub stream: 704 x 576@(1–25 fps)/704 x 480@(1–30 fps)
Third stream: 1920 x 1080@(1–25/30 fps)
*The values above are the max. frame rates of each stream; for multple streams, the values will be subjected to the total encoding capacity Stream Capability 3 streams Resolution 5M (2880 x 1620/2960 x 1668); 4M (2688 x 1520/2560 x 1440); 3M 2304 x 1296/2048 x 1536); 1080p (1920 x 1080); 1.3M (1280 x 960); 720p(1280x 720); D1 (704 x 576/704 x 480); VGA (640 x 480); CIF (352 x 288/352 x 240) Bit Rate Control CBR/VBR/ABR Video Bit Rate H.264:3 kbps–16384 kbps
H.265:3 kbps–16384 kbps Day/Night Auto(ICR)/Color/B/W BLC Yes HLC Yes WDR 120 dB Scene Self-adaptation (SSA) Yes White Balance Auto; natural; street lamp; outdoor; manual; regional custom Gain Control Auto/Manual Noise Reduction 3D NR Motion Detection OFF/ON (4 areas, rectangular) Region of Interest (RoI) Yes (4 areas) Image Stabilization Electronic Image Stabilization (EIS) Smart Illumination Yes Defog Yes Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 x 1520 resolution and lower) Mirror Yes Privacy Masking 4 areas Audio Built-in MIC Yes, built-in dual Mic Built-in Speaker Yes, built-in speaker Audio Compression G.711a; G.711Mu; PCM; G.726; G.723 Alarm Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; defocus detection;external alarm; SMD; security exception Network Network Port RJ-45 (10/100 Base-T) SDK and API Yes Network Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P Interoperability ONVIF (Profile S; Profile G; Profile T); CGI User/Host 20 (Total bandwidth: 64 M) Storage FTP; SFTP; Micro SD card (support max. 512 GB); NAS Browser IE: IE 9/11
Chrome
Firefox Management Software SmartPSS Lite; DSS; DMSS Mobile Client iOS;Android Cyber Security Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade Certification Certifications CE-LVD: EN 62368-1;
CE-EMC: Electromagnetc Compatbility Directve
2014/30/EU Port Audio Input 1 channel (RCA port) Audio Output 1 channel (RCA port) Alarm Input 1 channel in: wet contact, 5 mA 3–5 VDC Alarm Output 1 channel out: wet contact, 300 mA 12 VDC Power Power Supply 12 VDC/PoE (802.3af) Power Consumption Basic: 2.8 W (12 VDC); 3.6 W (PoE)
Max. (H.265+WDR+ warm light+siren and light active deterrence + intelligence on): 7.9 W (12 VDC); 9.2 W (PoE) Environment Operating Temperature –30 °C to +60 °C (–22 °F to +140 °F) Operating Humidity ?95% (RH), non-condensing Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F) Storage Humidity ?95% (RH), non-condensing Protection IP67 Structure Casing Material Metal+plastic Product Dimensions 288.4 mm x 94.4 mm x 84.7 mm (11.35" x 3.72«x 3.33»)(L x W x H) Net Weight 1.05 kg (2.31 lb) Gross Weight 1.35 kg (2.98 lb)
