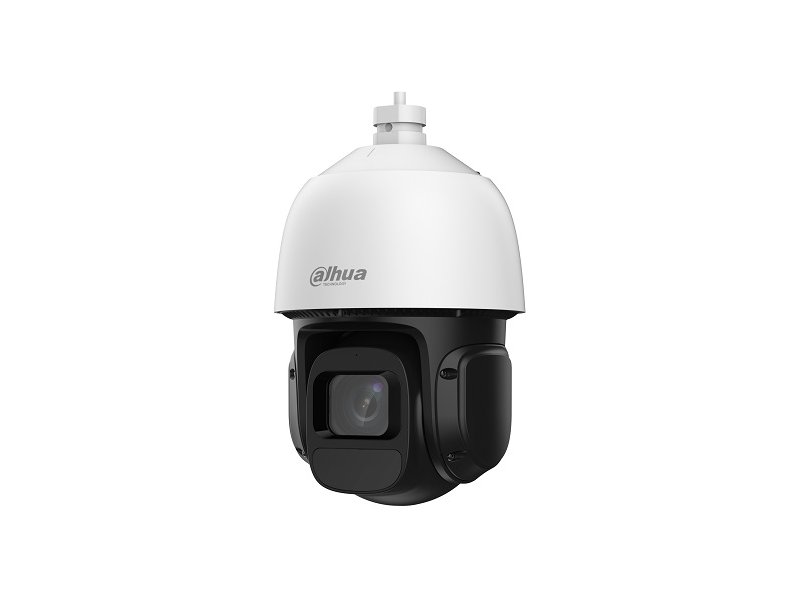

DAHUA 2.0Megapixel FULLHD Network PTZ Camera, 16x zoom SD3D216NB-GNY

Camera Image Sensor 1/2.8" CMOS Pixel 2 MP Max. Resolution 1920 (H) x 1080 (V) ROM 128 MB RAM 128 MB Electronic Shutter Speed 1 s–1/30,000 s Scanning System Progressive Min. Illumination 0.005 [email protected] (Color, 30 IRE); 0.0005 [email protected] (B/W, 30 IRE); 0 lux (Illuminator on) Illumination Distance 80 m (262.47 ft) (IR) Illuminator On/Off Control Zoom Prio; Manual; Auto; Off Illuminator Number 3 (IR) Lens Focal Length 5.0 mm–80 mm Max. Aperture F1.6–F3.5 Field of View H: 54.4°–4.1°; V: 31.4°–2.3°; D: 61.3°–4.7° Optical Zoom 16x Focus Control Auto; Semi-auto; Manual Close Focus Distance 0.1 m–1 m (0.33 ft–3.28 ft) Iris Control Fixed DORI Distance Lens Detect Observe Recognize Identify 5.0 mm–80 mm 1,103.4 m ( 3,620.08 ft) 435.9 m ( 1,430.12 ft) 220.7 m ( 724.08 ft) 110.3 m ( 361.88 ft) DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. PTZ Pan/Tilt Range Pan: 0° to 360° endless; Tilt: –15° to +90°, auto flip 180° Manual Control Speed Pan: 0.1°–40°/s; Tilt: 0.1°–40°/s Preset Speed Pan: 0.1°–40°/s; Tilt: 0.1°–40°/s Preset 300 Power-off Memory Yes Idle Motion Preset PTZ Protocol DH-SD Smart Event IVS Tripwire; intrusion Intelligence SMD SMD 3.0 Video Video Compression Smart H.265+;H.265;Smart H.264+;H.264B;H.264M;H.264H;MJPEG(Sub Stream 1) Streaming Capability 2 streams Resolution 1080p (1920 x 1080); 1.3MP (1280 x 960); 720p (1280 x 720); D1 (704 x 576/704 x 480); VGA (640 x 480); CIF (352 x 288/352 x 240) Video Frame Rate Main stream: 1080p/1.3M/720p @(1–25/30 fps) Sub stream: D1/VGA/CIF@ (1–25/30 fps) Bit Rate Control CBR/VBR Video Bit Rate H.264: 64 kbps–8,192 kbps H.265: 25 kbps–6,400 kbps Day/Night Auto (ICR); Color/B/W BLC Yes WDR 120 dB HLC Yes White Balance Auto; indoor; outdoor; ATW; manual; sodium lamp; natural light; street lamp Gain Control Auto; manual Noise Reduction 2D NR; 3D NR Motion Detection Yes Region of Interest (RoI) Yes Defog Electronic Image Stabilization (EIS) Digital Zoom 5x Image Rotation 180° S/N Ratio ?55 dB Network Network Port RJ-45 (10/100 Base-T) Network Protocol HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;IPv6;SSL;FTP;ARP;RTCP;RTP;IP Filter;RTMP Interoperability CGI;SDK;ONVIF (Profile S & Profile T) Streaming Method Unicast/Multicast User/Host 20 (total bandwidth: 64 M) Storage Micro SD card (256 GB); FTP Browser IE 7 and later versions; All Chrome versions; All Firefox versions; All Safari versions Management Software DSS Pro Mobile Client iOS;Android Certification Certifications CE: EN55032/EN55024/EN50130-4 Port Alarm Linkage Capture; recording; send email Alarm Event Motion/tampering detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection Power Power Supply 12 VDC, 2 A ± 10% PoE+ (802.3at) Power Consumption Basic: 8 W Max. (Basic power consumption + WDR + intelligence on + IR on + PTZ operation + Heater ): 18 W (12 VDC) Power Adapter Optional Environment Operating Temperature –30 °C to +60 °C (–22 °F to +140 °F) Operating Humidity ?95% Protection IP66;TVS 6000 V lightning proof; surge protection; voltage transient protection Structure Product Dimensions 240 mm x Ø151.5 mm (9.45" x Ø5.94") Net Weight 1.5 kg (3.31 lb) Gross Weight 2.5 kg (5.51 lb) Filter Remarks The precision of the presets for PTZ cameras might vary depending on different series. For scenes with high requirements on the precision, contact your local sales representative for assistance with selecting the model.
