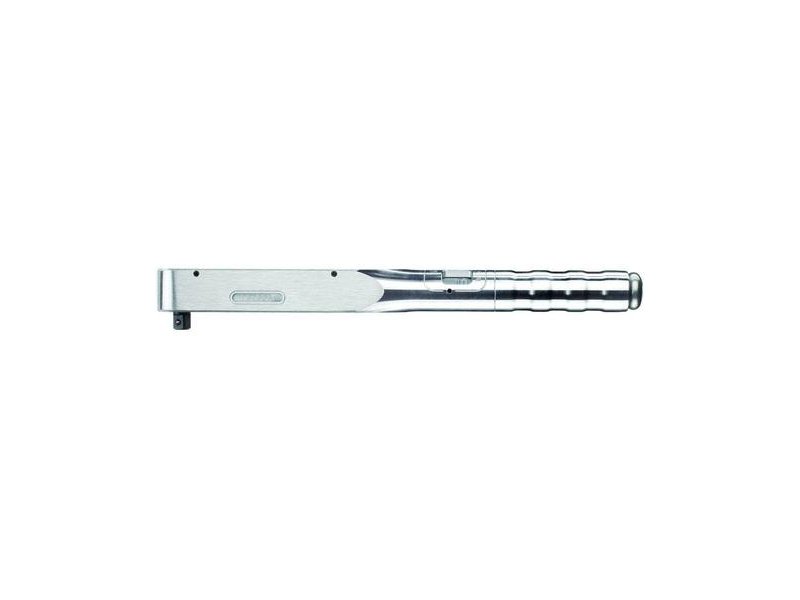

Gedore 7682000 torque wrench Nm

Controlled screw tightening in the range 8-40 N·m / 70-350 lbf·in. For use in almost all industrial manufacturing areas Features:. Classified to DIN EN ISO 6789:2003 Type II Class A, with a factory certificate. Working accuracy: /- 3 % tolerance of scale set torque. The specification of the standard ( /- 4 %) is exceeded. 3/8″ square drive with ball locking device DIN 3120 – A 10, ISO 1174. Automatic short-path actuation with tactile impulse and audible signal. Dual scale with a scale graduation of 5 N·m and 50 lbf·in Technical advantage/Function:. Lightweight and robust (as housing is made of an aluminium alloy), very workshop-friendly. No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches). Both the square drive and fulcrum are on an axis which ensures a high degree of user safety; can be extended to reduce the user’s working load. Extremely low wear attributable to reduced forces in a unique lever mechanism. Forged lever chain from our own quality forge. Maximum precision even when subjected to extreme continuous use. Long life cycles and tool lives. Easy operation – fast and safe torque tightening. Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle. Single- and double-square drive for controlled bi-directional tightening.Gedore 7682000. Product type: Click torque wrench, Units of measurement: Nm, Type: Mechanical. Length: 338 mm, Height: 30 mm, Weight: 1 kg
