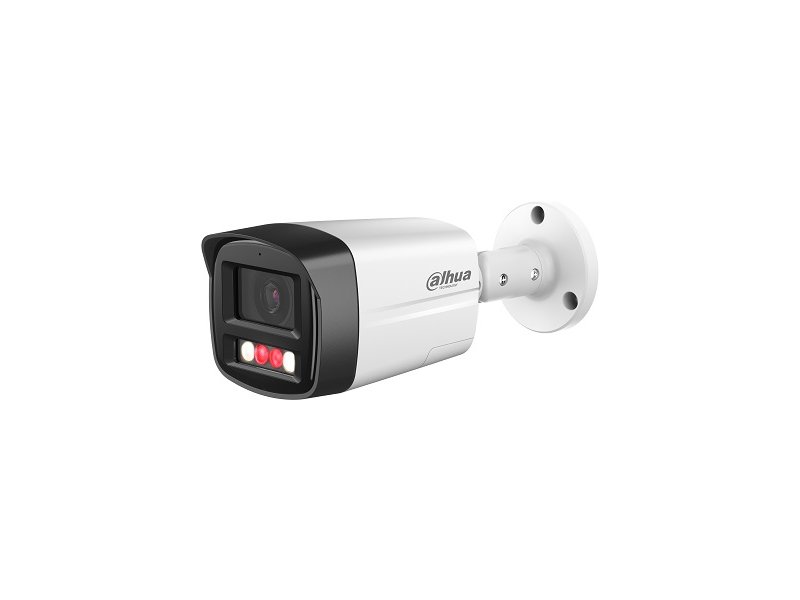

DAHUA IP Network Camera 5MP HFW2549TL-S-PV 3.6mm

Camera Image Sensor 1/2.7" CMOS Max. Resolution 2960 (H) × 1688 (V) ROM 128 MB RAM 256 MB Scanning System Progressive Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s Min. Illumination 0.006 [email protected] (Color, 30 IRE);
0.0006 [email protected] (B/W, 30 IRE);
0 lux (Illuminator on) S/N Ratio >56 dB Illumination Distance Up to 30 m (98.43 ft) (IR)
Up to 30 m (98.43 ft) (Warm Light) Illuminator On/Off Control Auto;Manual Illuminator Number 2 (IR LED); 2 (Warm light) Angle Adjustment Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360° Lens Lens Type Fixed-focal Lens Mount M12 Focal Length 3.6 mm Max. Aperture F1.0 Field of View 3.6 mm: H: 91.9°; V: 48.7°; D: 107.7° Iris Control Fixed Close Focus Distance 3.6 mm: 2.0 m (6.56 ft) DORI Distance Lens Detect Observe Recognize Identify 3.6 mm 77.8 m (255.25 ft) 31.1 m (102.03 ft) 15.6 m (51.18 ft) 7.8 m (25.59 ft) DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. Intelligence IVS (Perimeter Protection) Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) SMD SMD Plus Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos Video Video Compression H.265; H.264; H.264H; H.264B; MJPEG (only supported by sub stream) Smart Codec Smart H.265+; Smart H.264+ Video Frame Rate Main stream: 2960 × 1668@(1–20 fps )/2688×1520@(1-25/30 fps);
sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps);
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. Stream Capability 2 streams Resolution 5M (2960 × 1668); 4.6M (2880 × 1620); 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) Bit Rate Control CBR/VBR Video Bit Rate H.264: 32 kbps–8192 kbps;
H.265: 12 kbps–8192 kbps Day/Night Auto(ICR)/Color/B/W BLC Yes HLC Yes WDR 120 dB White Balance Auto; natural; street lamp; outdoor; manual; regional custom Gain Control Auto/Manual Noise Reduction 3D NR Motion Detection OFF/ON (4 areas, rectangular) Region of Interest (RoI) Yes (4 areas) Smart Illumination Yes Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) Mirror Yes Privacy Masking 4 areas Audio Built-in MIC Yes, built-in Mic Built-in Speaker Yes, built-in speaker Audio Compression G.711a; G.711Mu; G.726; PCM Alarm Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception Network Network Port RJ-45 (10/100 Base-T) SDK and API Yes Network Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour; P2P; auto registration Interoperability ONVIF (Profile S; Profile G; Profile T); CGI User/Host 20 (Total bandwidth: 48 M) Storage FTP; SFTP; NAS; Micro SD card (support max. 256 GB) Browser IE; Chrome; Firefox Management Software Smart PSS Lite; DSS; DMSS Mobile Client iOS;Android Cyber Security Configuration encryption;Trusted execution;Digest;Security logs;WSSE;Account lockout;syslog;Video encryption;802.1x;IP/MAC filtering;HTTPS;Trusted upgrade;Trusted boot;Generation and importing of X.509 certification Certification Certifications CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU Power Power Supply 12 VDC/PoE Power Consumption Basic: 2.1 W (12 VDC), 2.8 W (PoE);
Max. (H.265 + intelligence on + WDR + IR intensity + warm light deterrence + speaker), 11.6 W (12 VDC), 13.5 W (PoE) Environment Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F) Operating Humidity ?95% Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F) Storage Humidity ?95% Protection IP67 Structure Casing Material Metal Product Dimensions 197.9 mm × 80.2 mm × 76.2 mm (7.79" × 3.16" × 3.00") (L × W × H) Net Weight 0.54 kg (1.19 lb) Gross Weight 0.68 kg (1.50 lb)
