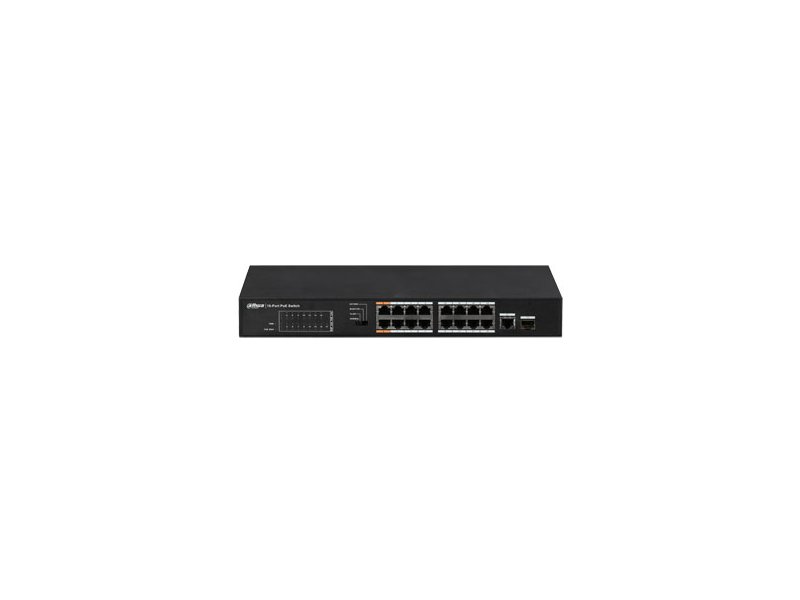

PoE switch 100Mbps 16portu+1G uplink

Features:• Compliant IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3x standards• Supports IEEE802.3af, IEEE802.3at, Hi-PoE standards• Supports normal working mode, port isolation (VLAN) mode, monitoring mode, network extend mode.• Supports Store-and-Forward• 16*10/100Mbps ports, 1*Gigabit Combo port, support port auto flipping (Auto MDI / MDIX)• Port 1-2 support the maximum power of 60W, PoE output total power up to 135W• Supports IEEE802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode• 4K entry MAC address table with auto-learning and auto-aging• LED indicators for monitoring power, link and activityTechnical Specifications:Standards• IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3z,IEEE802.3x, IEEE802.3af, IEEE802.3at, Hi-PoE• Interface 16 x 10/100Mbps RJ45• 1 x Gigabit Combo (RJ45/SFP)• Transfer Method Store-and-Forward• Switching Capacity 5.2Gbps• Packet Forwarding Rate 3.87Mpps• Packet Buffer 2.75Mbit• PoE Ports(RJ45) Port 1/2: Hi-PoE/PoE+/PoE;• Port 1-16: PoE+/PoE• Power Pin Assignment 1 to 2 port: 1/2/4/5 (+), 3/6/7/8 (-)• Other PoE port: 4/5 (+), 7/8 (-)• PoE Budget 135WMode• Default mode All ports can communicat• CCTV mode 1 to 8 ports support port priority, optimize port cache, switch all ports can communicate with each other• Extender mode 1 to 8 port rate down to 10Mbps, the farthest transmission distance of up to 250 meters, all ports can communicate with each other Indicators• Per Device Power: Green MAX: Red• Per Port Link/Act: Green PoE: Yellow• Power Supply AC 100V~240V 50/60HZ• Dimensions (W Ч D Ч H) 340*200*43 mm (13” metal case)Environment• Operating Temperature: 0°C ~ 45°C• Storage Temperature: -40°C ~ 70°C• Operating Humidity: 10%~90% RH No condensation• Storage humidity: 5%~90% RH No condensation
