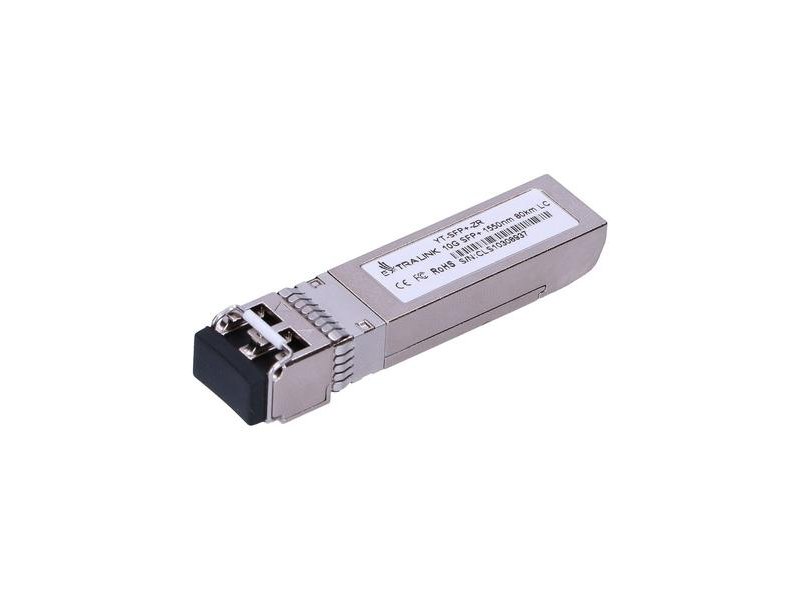

Extralink SFP+ Module SFP+ 10G 10Gbps, LC/UPC, 1550nm, 40km, single mode, DOM
119 €
Под заказ | На складе партнёра:
5 шт
Срок доставки: 5-10 рабочих дней
Способы и стоимость доставки
Производитель:
Extralink
Артикул OX.ee:3082130
Код производителя: EX.10093
EAN:
- 5903148910093
Время предъявления претензий: 12 месяцев
Описание |
High-speed module SFP+ 10G 1550NM SM 40KM LC DUP<br>Extralink SFP+-ZR is designed for 8.5G/10G and 10GBE fibers. The single-mode SFP optical module consists of two sections, i.e. the transmitter section containing an EML laser and the receiver section consisting of an APD photo diode integrated with TIA. All modules meet the safety requirements for a Class I laser. The digital diagnostic functions of the SFP+-ZR are available via a 2-wire serial interface, allowing real-time access to operating parameters such as transceiver temperature, laser beam current, transmitted optical power, received optical power and power supply voltage of the SFP single-mode insert. The SFP+ 10G module can operate with a data transfer rate of ≤4.25 Gbps or from 9.95 Gbps to 11.3 Gbps.Extralink SFP+ Module SFP+ 10G 10Gbps, LC/UPC, 1550nm, 40km, single mode, DOM. SFP transceiver type: Fiber optic, Maximum data transfer rate: 10000 Mbit/s, Interface type: SFP+. Quantity per pack: 500 pc(s). Package width: 355 mm, Package depth: 440 mm, Package height: 230 mm
|
Габаритные размеры | 440.00000 x 355.00000 x 230.00000 mm |
